SPRING-LOADED CONTACTS
& CLEANING DEVICES
IDEAS FOR ELECTROPLATING & HIGH CURRENT!
Reliable high-current transmission
The system provides high electrical conductivity through the use of copper, enabling reliable and efficient power transmission. Extremely high current capacity is achieved by specially designed contacts, making the system suitable for demanding high-current applications.
A self-cleaning effect is ensured by spring-loaded contact fingers, while individually insulated springs at each component increase operational reliability and reduce wear. These features contribute to stable and consistent electrical contact over long operating periods.
Structural stability and durability are enhanced through the use of press-welded sheet packages instead of single sheets. The stainless steel console further increases mechanical strength and ensures high durability, even under harsh industrial conditions.
For maximum flexibility, the flight bar width is adjustable, allowing easy adaptation to different system requirements. In addition, temperature monitoring is possible at critical and hottest points, enabling early detection of thermal loads and supporting safe, continuous operation.
High Performance

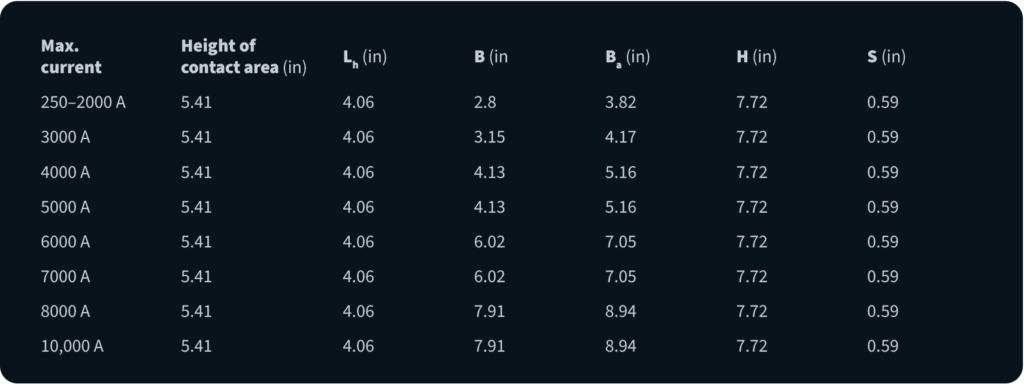

TECHNICAL SPECIFICATIONS
EASY REFITTING
• Individually adjustable for each installation
• Enhanced force capability available, depending on configuration
• Proven, field-tested systems
