Our MS-Series water-cooled modular plating rectifier, mounted into wall-mount enclosure, provides a constant low ripple of up to 3 % to achieve excellent results for any plating process. Switch mode rectifiers do not have process limitations like SCR controlled rectifiers.

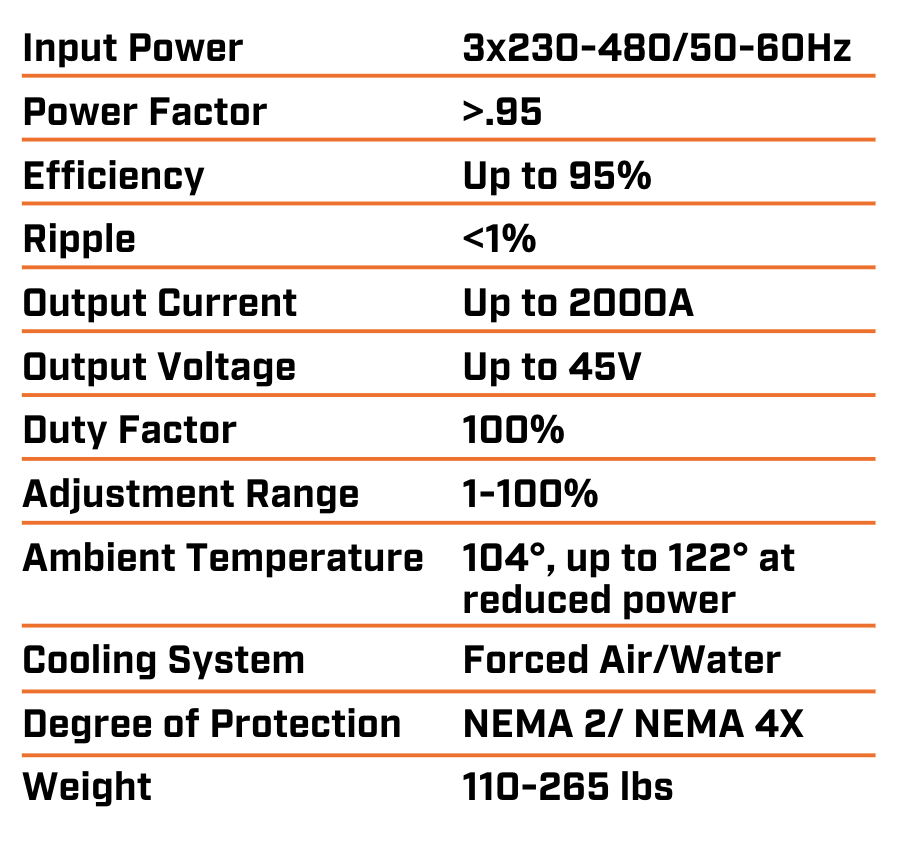

Features

  • NEMA 4X Stainless Steel Enclosure
  • Input Voltage 230-480VAC
  • Output Power: 30KW
  • Output Voltage: 0-25V
  • Output Current: 0-2000A
  • High Efficiency: >90% and Power Factor up to 93%
  • DC Short Circuit Protection
  • Lockable Disconnect
  • Parallel Operation for Increased Power
  • Mounts on a Wall or Stand
  • Optional Interface: Modbus, Profibus, Ethernet I/P, DeviceNet, 4-20mA or 0-10V
  • Manual Interface via Digital Remote or UPC 5000
  • Over Temperature Protection
